DIAMOND WIRE


Diamond wire cuts stones with accuracy.
The product is waven to an endless loop for immediate use & more durability.
Original tungsten carbide long size diamond bead gains long tool life.


PRODUCT LINE UP

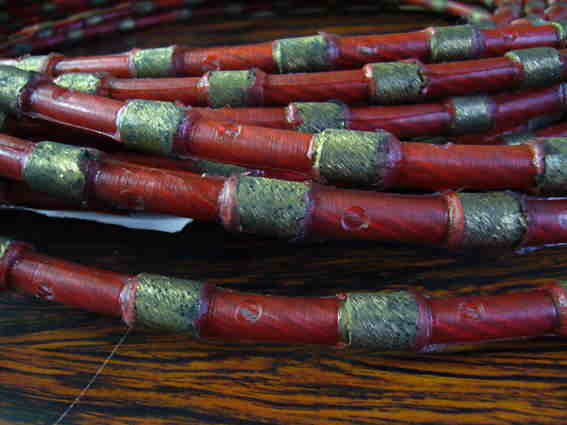

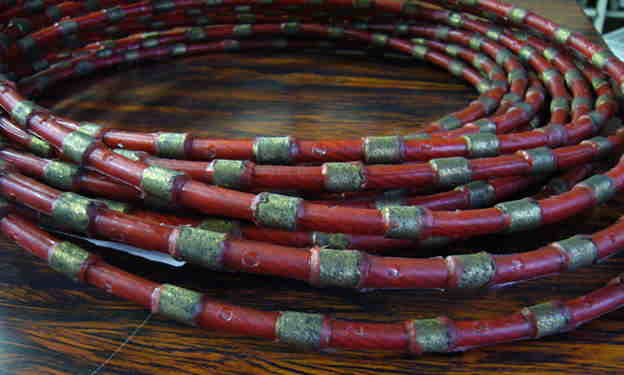

Diamond Wire
(Diameter 10.5mm)
Bead Diameter (Diameter of Diamond Layer) 10.5mm
Bead Length (Length of Diamond Layer, Not including the Inner Sleeve) 12mm
Type By Cut Material Granite Regular
Hard Granite
Soft Granite
Sandstone
Limestone
Marble
Refractory Hard Material
Reinforced Concrete
Jade, Petrified Wood
Others On Request
Connection Endless Loop (Stationary/ Gantry Wire Saw)
Crimped On Site (Quarry Wire Saw)
Requested Wire Peripheral Speed 30-35meter per second (Regular Type)
42meter per second (Super High Speed Cut Type)
25meter per second (Quarry Type)
Delivery To be shipped in 2-4 days.

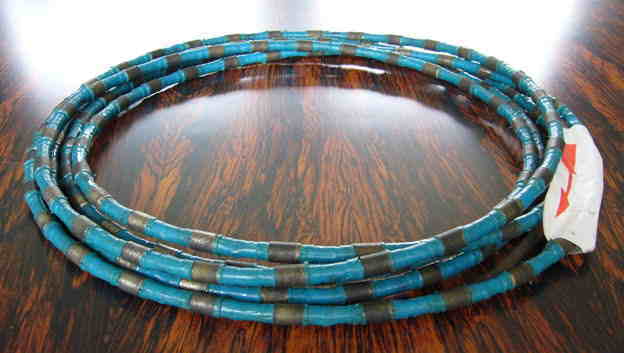

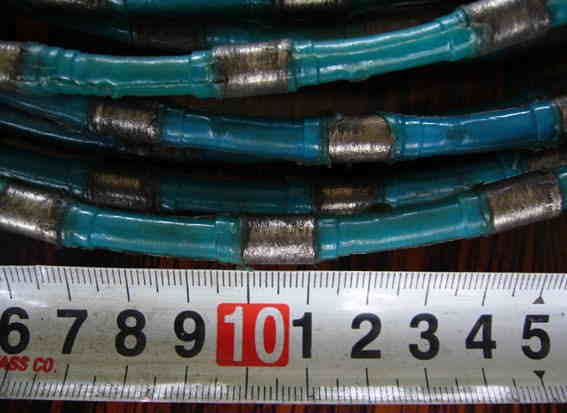

Diamond Wire
(Diameter 9mm)
Bead Diameter (Diameter of Diamond Layer) 9mm
Bead Length (Length of Diamond Layer, Not Including the Inner Sleeve) 10mm
Type By Cut Material Same as Diameter 10.5mm
Connection Endless Loop
Requested Wire Peripheral Speed 30-35meter/second
Delivery To be shipped in 2-4 days.

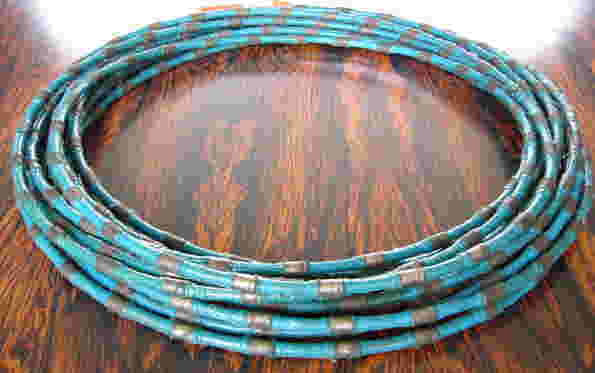

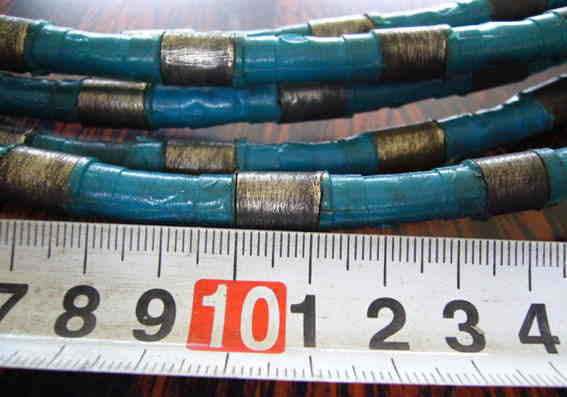

Diamond Wire
(Diameter 8mm)
Bead Diameter (Diameter of Diamond Layer) 8mm
Bead Length (Length of Diamond Layer, Not including the Inner Sleeve) 10mm
Type By Cut Material Same As Diameter 10.5mm and 9mm
Connection Endless Loop
Requested Wire Peripheral Speed 30-35meter/second
Delivery To be shipped in 2-4 days
